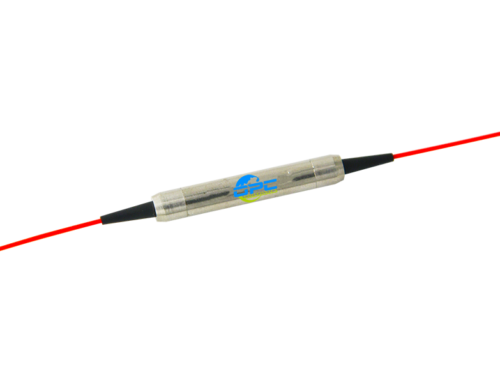

The 1030nm Polarization Maintaining Isolator is a two port micro-optic device built with PM panda fiber. The PM isolator features low insertion loss, high isolation, high extinction ratio and high reliability and stability. The device guides optical light in one direction and eliminates back reflection and back scattering in the reverse direction. The device can be built with bare fiber, or 900um jacket cable. The PM Panda Fiber Isolator is widely used in amplifier systems, fiber optic systems and fiber lasers.
If you do not see a standard isolator that meets your needs, we welcome the opportunity to review your desired specification and quote a custom isolator. Requests for custom fiber pigtails, different wavelengths and handling power of operation or other specific needs will be readily addressed. OPC PHOTONICS can respond to custom requirements with short lead times.
| Features | Applications |
| · Low Insertion Loss
· High Extinction Ratio · High isolation · Excellent stability and reliability |
· Fiber laser
· Fiber amplifier · Fiber Sensor · Communications |
Performance Specifications
| Parameter | Unit | Specification | |||||||||||
| Operating wavelength | nm | 1030 | 1064 | 1310,
1480,1550 |
1940, 2000, 2050,2100 | ||||||||
| Grade | P | A | P | A | P | A | P | A | P | A | P | P | |
| Type | Single Stage | Single Stage | Dual Stage | Single Stage | Dual Stage | Single Stage | Dual Stage | ||||||
| Operating Wavelength Range | nm | ±5 | ±20 | / | |||||||||
| Typ. Insertion Loss at 23℃ | dB | 3.0 | 3.5 | 1.5 | 1.6 | 2.3 | 2.6 | 0.4 | 0.5 | 0.5 | 0.6 | / | / |
| Max. Insertion loss at 23℃ | dB | 3.5 | 4.0 | 1.8 | 2.2 | 3.2 | 3.4 | 0.55 | 0.65 | 0.65 | 0.8 | 1.2 (λc ± 20 nm) | 1.5 (λc ± 20 nm) |
| Typ. Peak Isolation at 23℃ | dB | 42 | 35 | 35 | 32 | 55 | 52 | 42 | 40 | 58 | 55 | / | / |
| Min. Isolation at 23℃ | dB | 28 | 25 | 30 | 28 | 45 | 42 | 28 | 26 | 48 | 45 | 35 (λc ± 50 nm) | 16 (λc ± 50 nm) |
| Extinction ratio( Type B) | dB | ≥20 | ≥18 | ≥20 | ≥18 | ≥20 | ≥18 | ≥20 | ≥18 | ≥20 | ≥18 | ≥18 | |
| Extinction ratio (Type F) | dB | ≥22 | ≥20 | ≥22 | ≥20 | ≥22 | ≥20 | ≥22 | ≥20 | ≥22 | ≥20 | ≥20 | |
| Return loss (input/output) | dB | ≥50/50 | |||||||||||
| Fiber Type | – | Nufern PM980-XP / PM1060L Fiber or other | PM1300 Panda Fiber or PM1550 | Nufern PM1950 or PM1550 | |||||||||
| Max. Power Handling (CW) | mW | 50 | 300 | 100 | 0.3, 1, 2, 5, 10,20 | 0.5, 1, 2, 5, 10 | |||||||
| Max. Peak Power for Pulse | kW | 1, 5,10 | / | 1, 5,10 | |||||||||
| Max. Tensile Load(N) | N | 5 | |||||||||||
| Operating temperature | ℃ | -5℃ ~ + 70℃ | |||||||||||
| Storage temperature | ℃ | -40℃ ~ + 85 ℃ | |||||||||||
| Dimensions | mm | Ф5.5× L35 | Ф5.5× L35(<5W), 65x12x9(>5W) | ||||||||||
| “B” for Both axis working, “F” for Fast axis blocking | |||||||||||||
- Above specifications are for device without connector.
- For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower and ER will be 2dB lower. The default connector key is aligned to slow axis. Power transmits through the connector less than 2W.
- For this 1030nm Isolator, Due to high IL, it is recommended to use average power of <100mW. If you need higher handle power, please look for our 1064nm High power isolator.
- If there is pulse application, please be sure to inform us of pulse energy and peak power.
Package Dimension
*Due to ongoing design improvements, the package size is subject to change. Please contact OPC PHOTONICS for confirmation.
Order information P/N: PMISO-①-②-③-④-⑤-⑥-⑦-⑧
When you inquire, please provide the correct P/N number according to our ordering information, and attach the appropriate description would be better. If need any connector, we do not recommend choosing a 250μm bare fiber pigtail.
| ① | ② | ③ | ④ | ⑤ | ⑥ | ⑦ | ⑧ |
| Type | wavelength | Grade | Power Handling | Axis Alignment | Pigtail Diameter | Fiber Length | Connector |
| S:Single stage
D:Dual stage |
30:1030nm
64:1064nm 13:1310nm 14:1480nm 15:1550nm 1940:1940nm 2000:2000nm 2050:2050nm XX: Others |
P:P Grade
A:A Grade |
L: Refer to the above table
L:<0.3W 1:1W 2:2W 5:5W 10:10W |
B:Both axis working
F: Fast axis blocking |
25:250μm bare fiber
90:900μm Loose Fiber XX: Others |
08:0.8m
10:1.0m XX: Others |
00:None
FP: FC/PC FA: FC/APC XX: Others |
Part Number Example #1: PMISO-S-30-P-L-F-25-10-00
Description: 1030nm Polarization Maintaining single stage Isolator – 100mW,<1kW peak power, P grade, Fast axis blocking, and 1.0m PM980-XP fiber length with bare fiber and no connector at all ports.
Part Number Example #2: PMISO-S-13-P-L-B-90-10-FA
Description: 1310nm Polarization Maintaining Single stage Isolator – 300mW, P grade, both axis working, 1.0m Fiber length with 0.9mm OD loose tube, and FC/APC connectors at all ports.
Part Number Example #3: PMISO-S-2000-L-F-P19-90-10-FA
Description: 2000nm Polarization Maintaining Dual Stage Isolator – 300mW, Fast axis blocking, PM1950 fiber, 1.0m fiber length with 0.9mm OD loose tube, and FC/APC connectors at all ports.
Ordering Information for Custom Parts
If you need to customize other specifications, please provide detailed description for your requirement.
